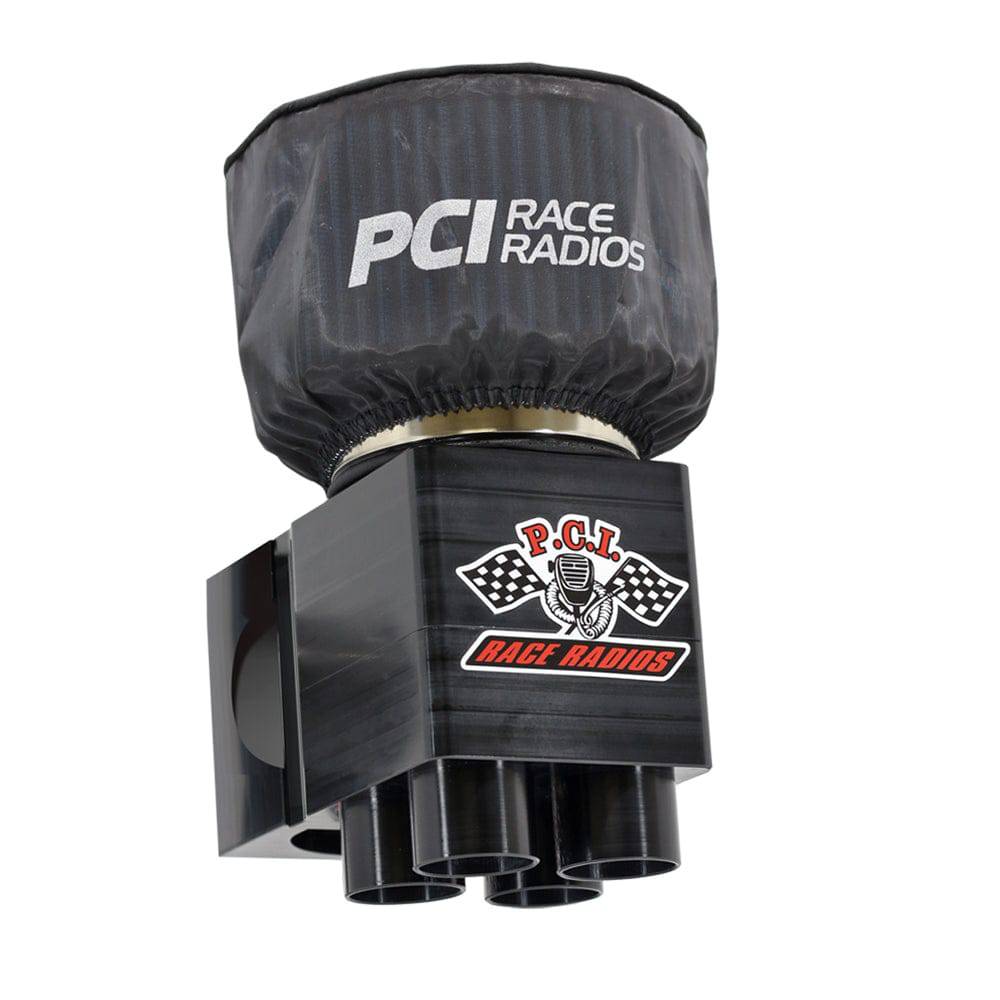

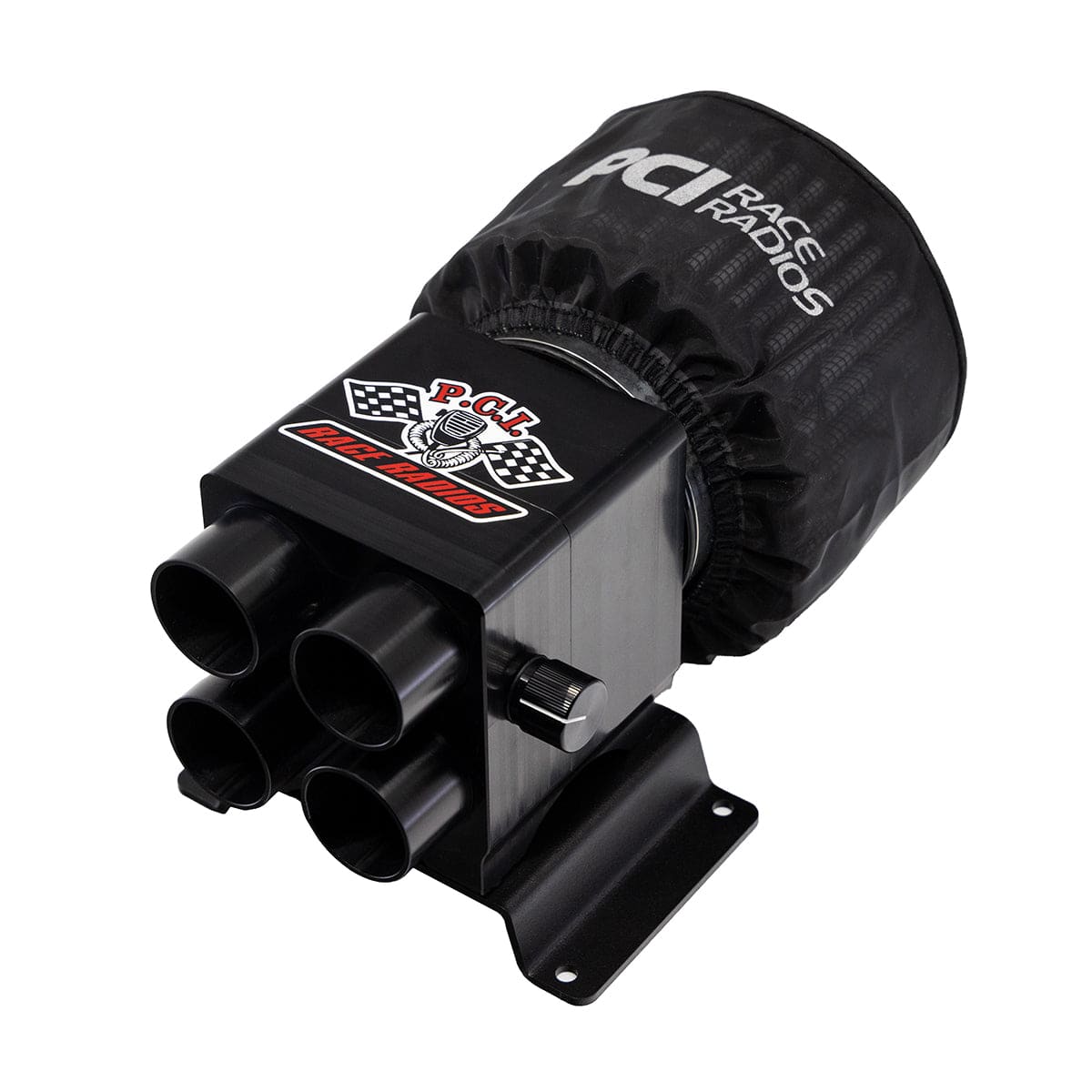

RaceAir Boost Quad

PCI's RaceAir Boost brings high volume air in a sleek, easy to install package. Built in variable speed controller allows you to select the amount of forced air you need depending on your excursion.

• Includes Variable Speed Control

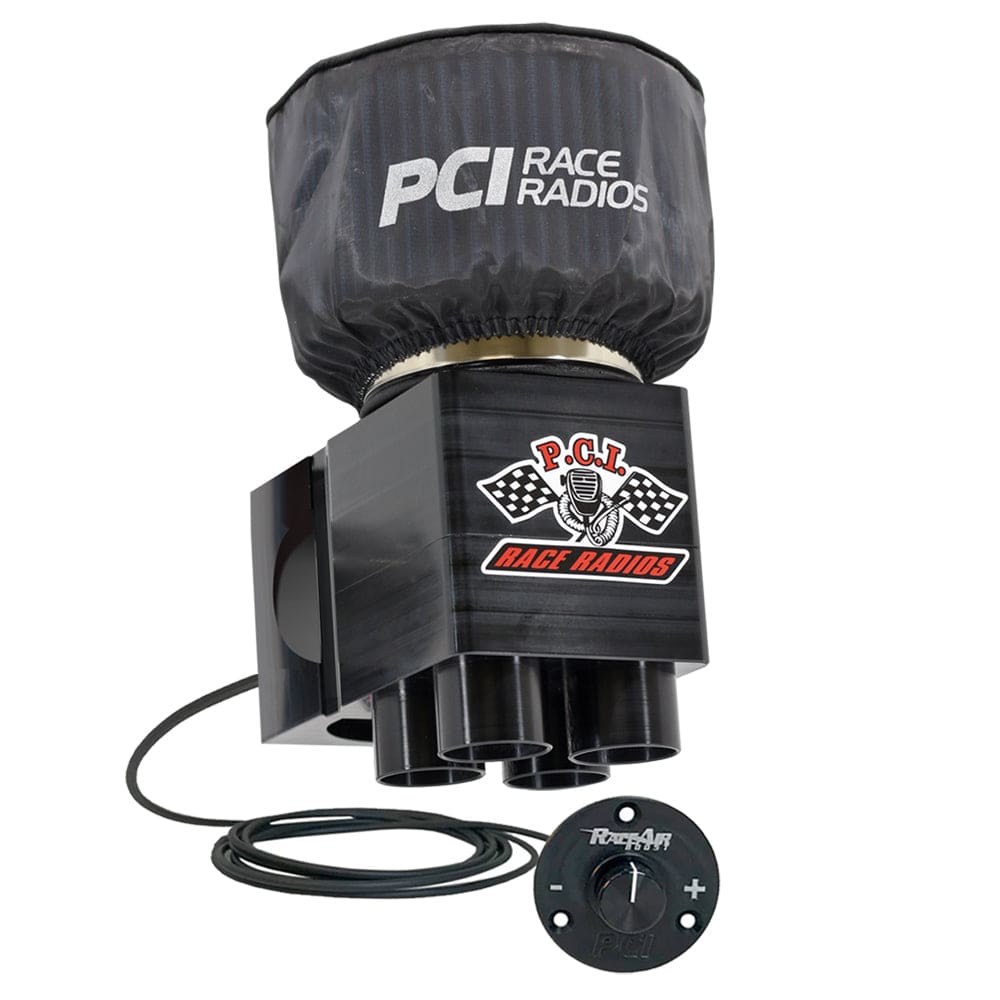

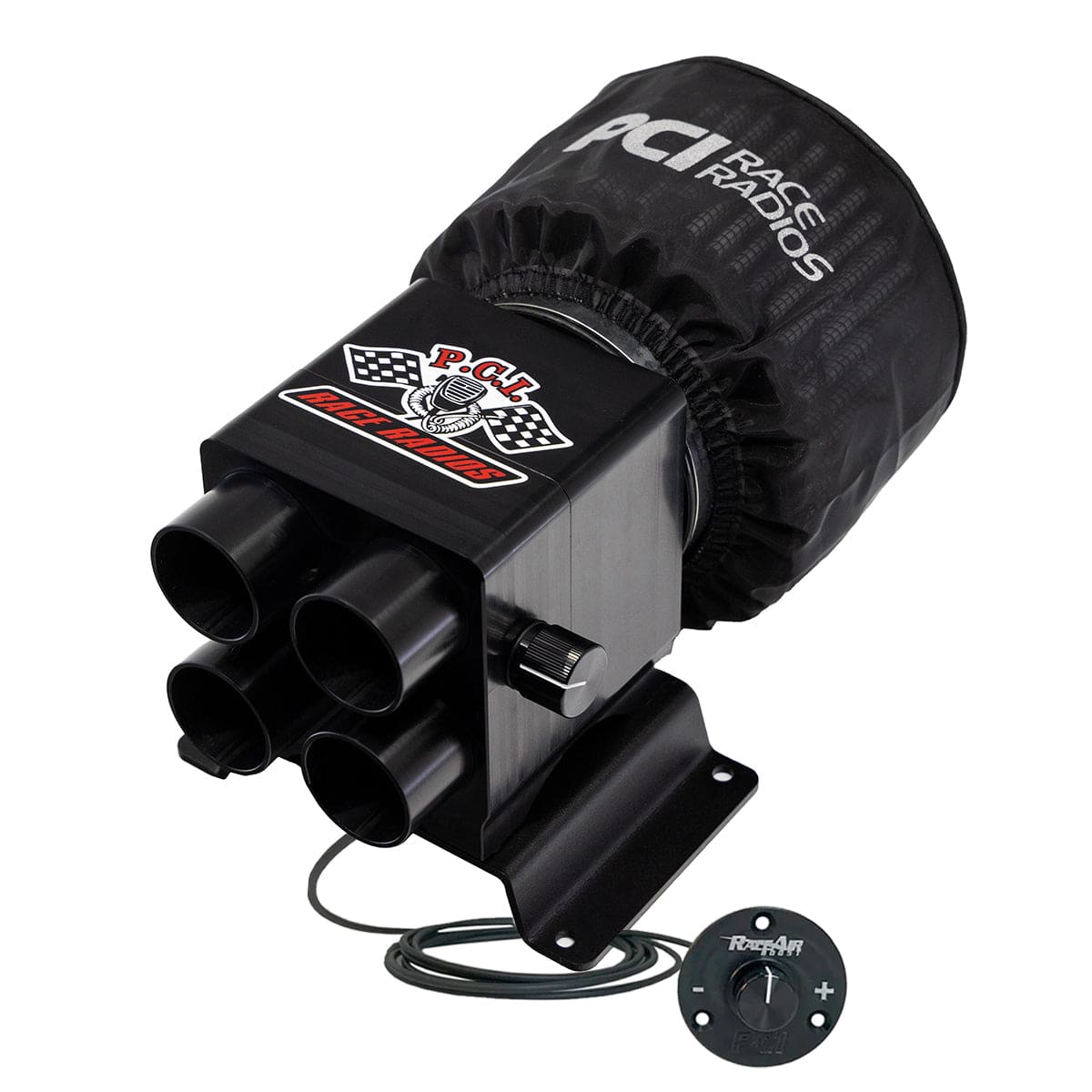

• Optional remote control with 10ft cable
• Lightweight, durable billet housing
• Brushless, DC Motor

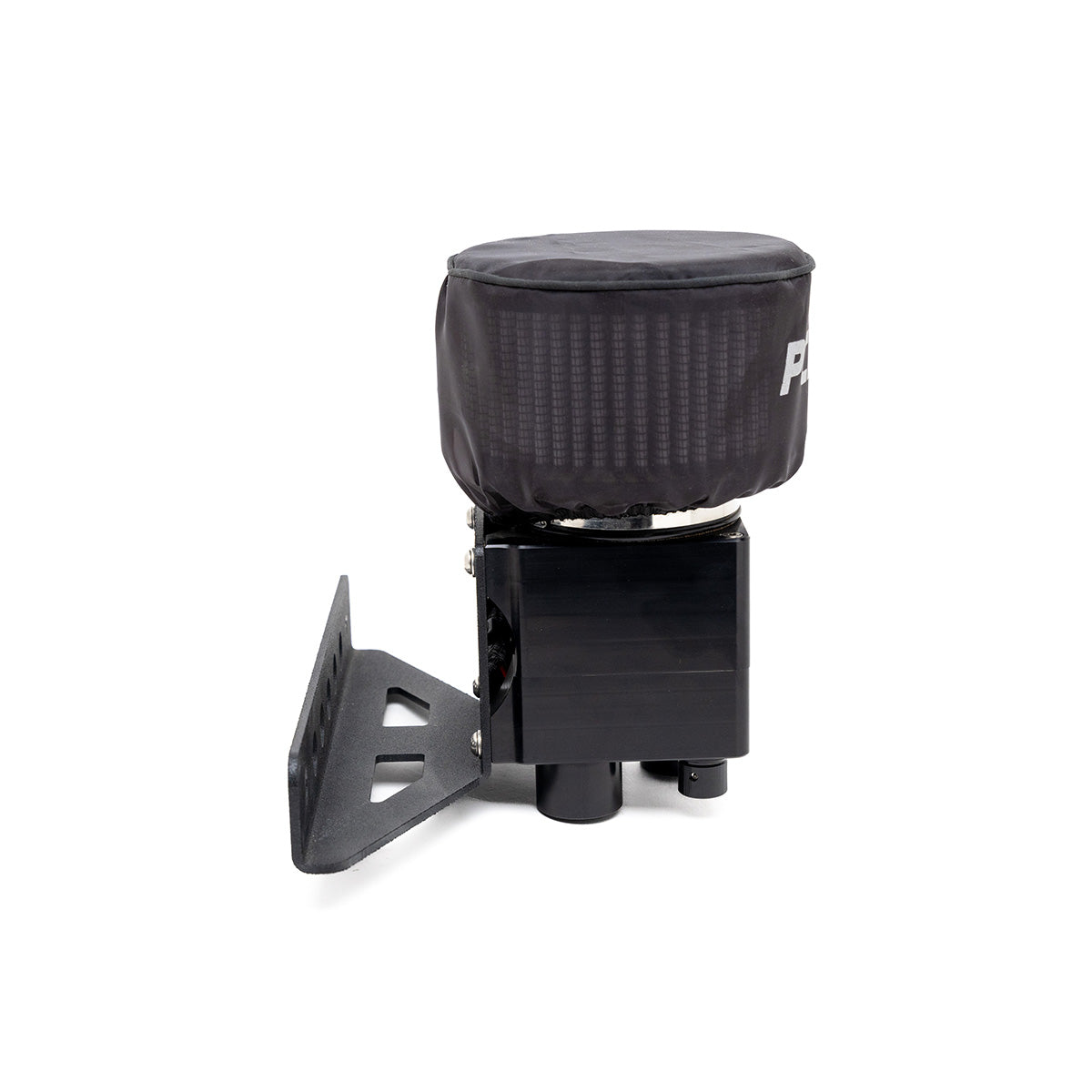

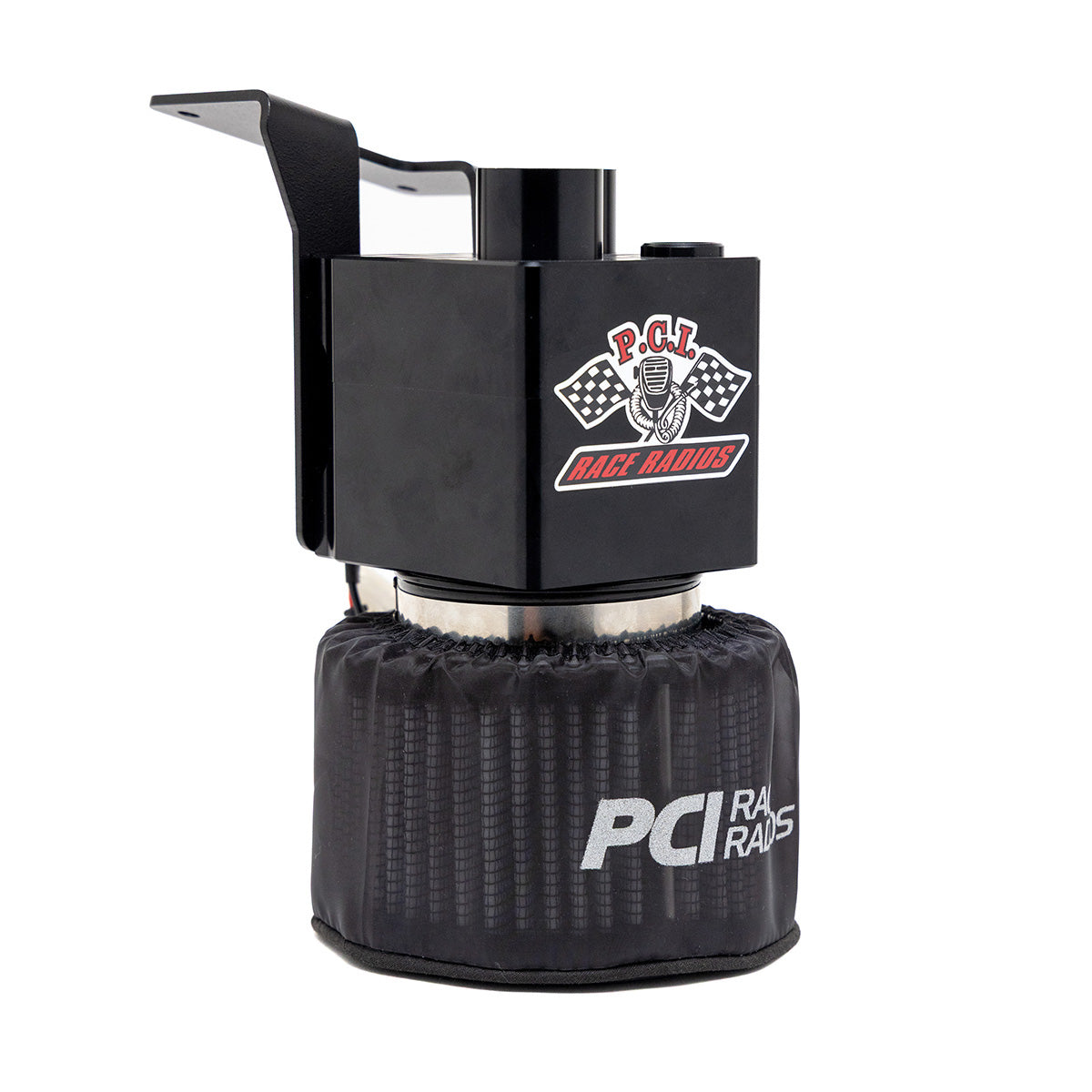

• Option of Panel Mount Plate or Roll Bar mounts, included for 1.5"/1.75" or 1.85"/2.5". Rotate the bracket 90 degrees to change between 1.5" and 1.75", 1.85" and 2.5", RZR Pro R, or Maverick R. Speed UTV Mount option for 1.8" roll bar.
• Speed UTV option includes SAE Power Connection.
• Four Positions
• Can be mounted in any direction. (Sideways, upside down)
• Prefilter and filter included
• Hoses Sold Separately. When mounting in the middle of a vehicle, we recommend a 4ft, 5ft, and two 8ft hoses. When mounting in the rear of the vehicle, we recommend a 4ft, 5ft, 10ft, and 10ft.
• 2 Year warranty against manufacturer defect.
• Wiring Harness and Rocker Switches sold separately.

Cleaning Instructions:

• Step 1: Tap the filter to remove any loose dirt. Apply 409 or simple green works great.   Let stand for 10–15 minutes and allow the cleaner to break down the dirt.
• Step 2: Rinse with tap water or a garden hose from the inside out. Do not use high pressure.
• Step 3: Let it air dry out of direct sunlight. Do not apply heat. Wait until the filter is completely dry.

Specifications

• 2.8 amps - 4 amps (using variable speed controller) at 12 volts
• 2.1 lbs with bracket and controller
• 5 Amp Fuse (included with power cable)

Size Chart

• Stock RZR Roll Bars are generally 1.75"
• Some Aftermarket RZR seat bars are 1.5"
• Yamaha Roll Bars are generally 1.75"
• X3 Roll bar behind the seat is 2.5" on the two seater. The 4 seater has 1.85" behind the driver seat and 2.5" behind the rear seats.
